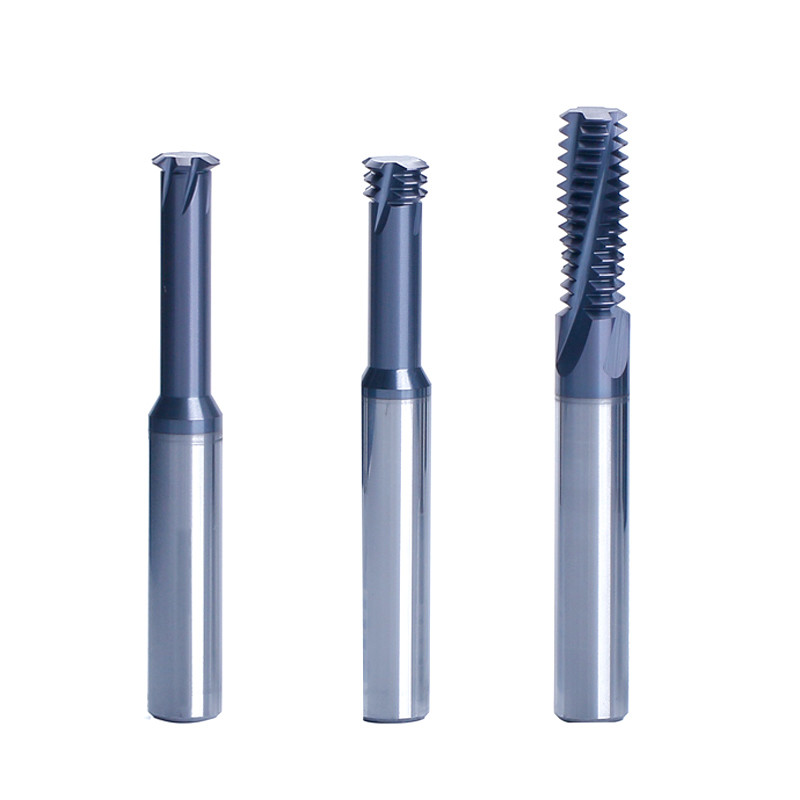

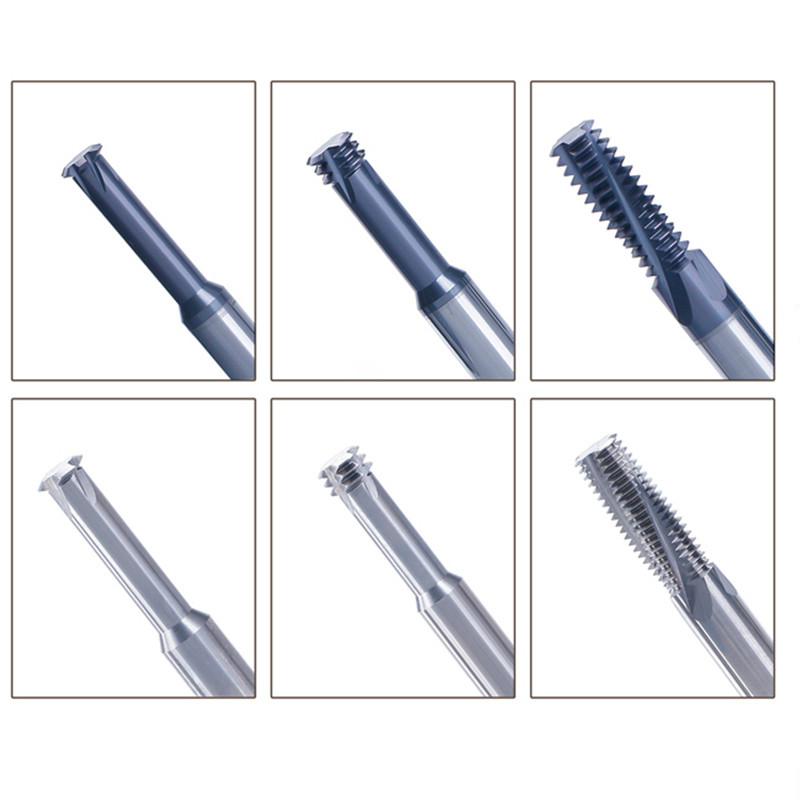

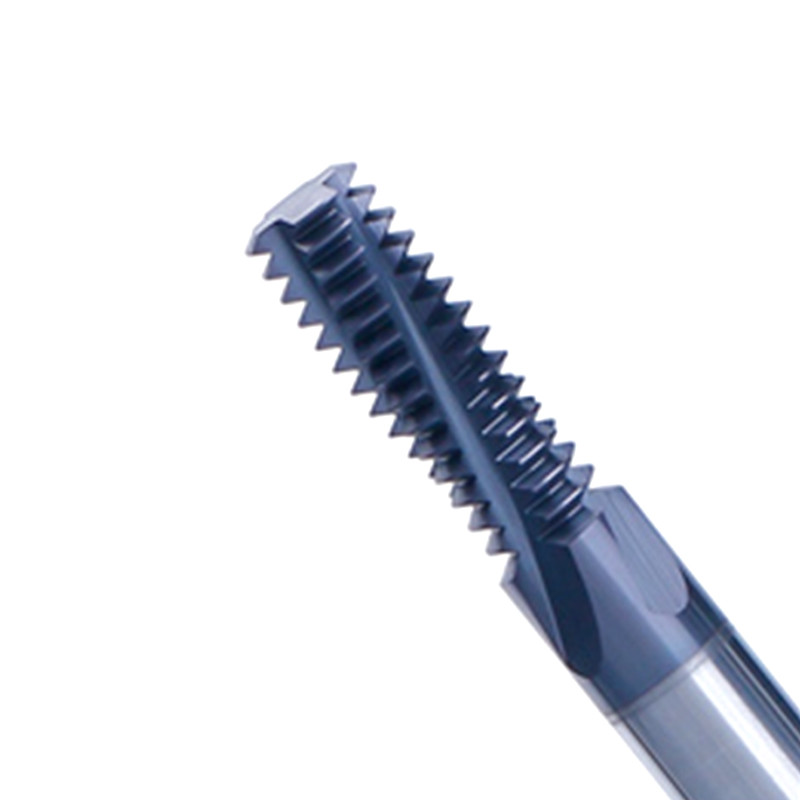

Solid tungsten carbide internal thread milling cutters are primarily used for metal internal threading and milling. They are suitable for machining carbon steel, iron steel, low and high alloyed steel, and more. With advanced nanometer coatings on the flutes, these cutters provide predictable, long tool life across a range of applications, including rough machining and finishing processes.
We are committed to meeting your specific demands through our outstanding R&D team and standardized factory production. We welcome you to contact us!
| Brand Name | Drow |
|---|---|
| Model Number | Three-teeth Internal Thread Milling Cutter |
| Customized Support | OEM, ODM, OBM |
| Standard | ISO |
| Product Type | Milling Thread Cutter |
| Material | Tungsten Carbide, 100% New Material |
| Coating | AlTiN, TiAlN, TiSiN, NaCo, DLC, per your demands |
| Hardness | HRC 45/55/60/65 degrees |
| Specification | M1.0 ~ M24 |
| Shank Diameter | 4 ~ 16 mm |
| Sample Order | Accepted |
| Usage | Internal thread milling |
| Applicable Material | Stainless steel, cast iron, carbon steel, quenched steel, and more |
| Compatible Machines | CNC machining centers, engraving machines, and other high-speed machines |
| Machining Type | Roughing, Semi-Finishing, Finishing |
| Customization | Professional and available to meet your special requirements |
100% New Material: Made from high carbon steel, which, after quenching, exhibits high hardness, good wear resistance, and durability.
High-Density Coating Process: Provides excellent wear resistance and effective heat insulation, ensuring a long service life for the tool.
Large Core Diameter Design: Features an arc cutting edge and a large core diameter for enhanced wear resistance and high-strength anti-bending capabilities.
Burr-Free Cutting: The sharp and wear-resistant cutting edge ensures good chip removal, high processing efficiency, precise threading, and exceptional durability.
Sharp and Precise: Utilizes mirror grinding technology combined with large-capacity chip flutes for enhanced sharpness and precision.
Universal Round Shank: Designed with external grinding and minimal runout, achieving 1 µm roundness and 2 µm straightness.
Product Specification:
| Model | Pitch | Shank Diameter | Cutting Diameter | Cutting Length | Total Length | Flutes |
| mm | d mm | D mm | H mm | L mm | ||
| M1.0x0.25 | 0.25 | 4 | 0.73 | 2.3 | 50 | 3 |
| M1.2x0.25 | 0.25 | 4 | 0.92 | 2.8 | 50 | 3 |
| M1.4x0.3 | 0.3 | 4 | 1.05 | 3.2 | 50 | 3 |
| M1, 6x0 .35 | 0.35 | 4 | 1.2 | 3.3 | 50 | 3 |
| M1.8x0.35 | 0. 35 | 4 | 1..41 | 4.1 | 50 | 3 |
| M2.0x0.4 | 0.4 | 4 | 1.54 | 4.4 | 50 | 3 |
| M2.2x0. 45 | 0. 45 | 4 | 1. 63 | 4.8 | 50 | 3 |
| M2.5x0 45 | 0.45 | 4 | 1,96 | 5.3 | 50 | 3 |
| M3x0.5 | 0.5 | 4 | 2.4 | 6.4 | 50 | 3 |
| M3.5x0.6 | 0.6 | 4 | 2.75 | 7.4 | 50 | 3 |
| M4x0.7 | 0.7 | 4 | 3.15 | 8.6 | 50 | 3 |
| M4.5x0.75 | 0.75 | 4 | 3.5 | 9.5 | 50 | 3 |
| M5x0.8 | 0.8 | 6 | 4 | 12 | 50 | 3 |
| M6x1.0 | 1 | 6 | 4.75 | 13 | 50 | 3 |
| M8x1.25 | 1.25 | 6 | 6 | 17.3 | 50 | 3 |
| M10x1.5 | 1.5 | 8 | 8 | 21.8 | 60 | 3 |
| M12x1.75 | 1.75 | 10 | 10 | 24 | 75 | 4 |
| M14x2.0 | 2 | 10 | 10 | 25 | 75 | 4 |
| M16x2.0 | 2 | 12 | 11.5 | 27 | 75 | 4 |
| M20x2.5 | 2.5 | 16 | 15 | 36 | 90 | 4 |
| M4x0.5 | 0.5 | 4 | 3 | 8.6 | 50 | 3 |
| M6x0.75 | 0.75 | 6 | 4.8 | 13 | 50 | 3 |
| M8X1.0 | 1 | 6 | 6 | 17.3 | 50 | 3 |
| M8x0.75 | 0.75 | 6 | 6 | 17.3 | 50 | 3 |
| M8x0.5 | 0.5 | 6 | 6 | 17.3 | 50 | 3 |
| M10x1.25 | 1.25 | 8 | 8 | 21.8 | 60 | 3 |
| M10x1.0 | 1 | 8 | 8 | 21,.8 | 60 | 3 |
| M10x0.75 | 0.75 | 8 | 8 | 21.8 | 60 | 3 |
| M10x0.5 | 0.5 | 8 | 8 | 21.8 | 60 | 3 |
| M12x1.5 | 1.5 | 10 | 10 | 25 | 75 | 4 |
| M12x1.25 | 1.25 | 10 | 10 | 25 | 75 | 4 |
| M12x1.0 | 1.0 | 10 | 10 | 25 | 75 | 4 |
| M14x1.5 | 1.5 | 10 | 10 | 28 | 75 | 4 |
| M14x1.25 | 1.25 | 10 | 10 | 28 | 75 | 4 |
| M14x1.0 | 1 | 10 | 10 | 28 | 75 | 4 |
| M16x1.5 | 1.5 | 12 | 12 | 30 | 75 | 4 |
| M16x1.25 | 1.25 | 12 | 12 | 30 | 75 | 4 |
| M16x1.0 | 1 | 12 | 12 | 30 | 75 | 4 |
| M20x2.0 | 2 | 16 | 15.8 | 40 | 90 | 4 |
| M20x1.5 | 1.5 | 16 | 15.8 | 40 | 90 | 4 |
| M20x1.0 | 1 | 16 | 15.8 | 40 | 90 | 4 |
| M24x3.0 | 3 | 16 | 16 | 45 | 90 | 4 |
Q1: How can we guarantee quality?
A: We always provide a pre-production sample before mass production and conduct a final inspection before shipment.
Q2: What can you buy from us?
A: We offer carbide inserts, carbide end mills, carbide drills, carbide boring tools, cutting tools, and customized carbide precision molds.
Q3: Why should you buy from us instead of other suppliers?
A: At Drow, we are dedicated to research and development in tungsten carbide, cutting tools, cutting inserts, and new materials. We specialize in the design and production of carbide turning inserts, indexable inserts, CNC inserts, and more.
Q4: What are your payment terms?
A: We require a T/T payment structure of 30% as a deposit and 70% balance before delivery. We will provide photos of the products and packaging before you pay the balance.
